SpringLock Security Fixings

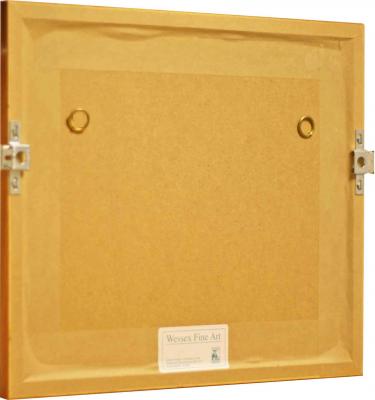

For small to medium pictures two fixings can be used on the side as in the picture on the left. Two screws are fitted into the wall (size no.6, 8 or 10 screws) corresponding to the two fixings on the back of the frame. The picture is then lined up and the fixings placed over the two screws in the wall.  Push the two locks home to secure the frame to the wall. The fixings allow you to adjust the picture so that it is level.

Springlock Security Slot Fixings

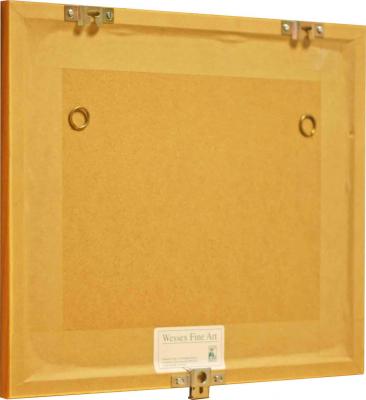

For larger pictures use the SpringLock slot fixings on the top of the frame and a standard security fixing on the bottom of the frame as in the picture on the right. Three screws are fitted into the wall (size no.6, 8 or 10 screws) corresponding to the three fixings on the back of the frame. The picture is then first hung on the top two fixings and thenput over the bottom fixing. Push the lock home to secure the frame to the wall.

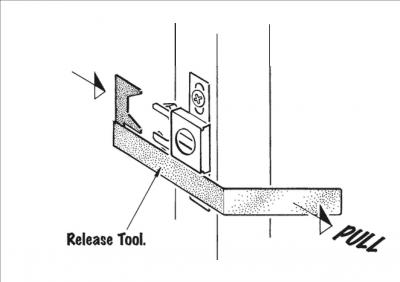

Springlock Releasing Handle

To release the locks insert releasing handle behind the frame and pull out as in diagrams on the left.

Springlock Security Fittings Products

3 Products
