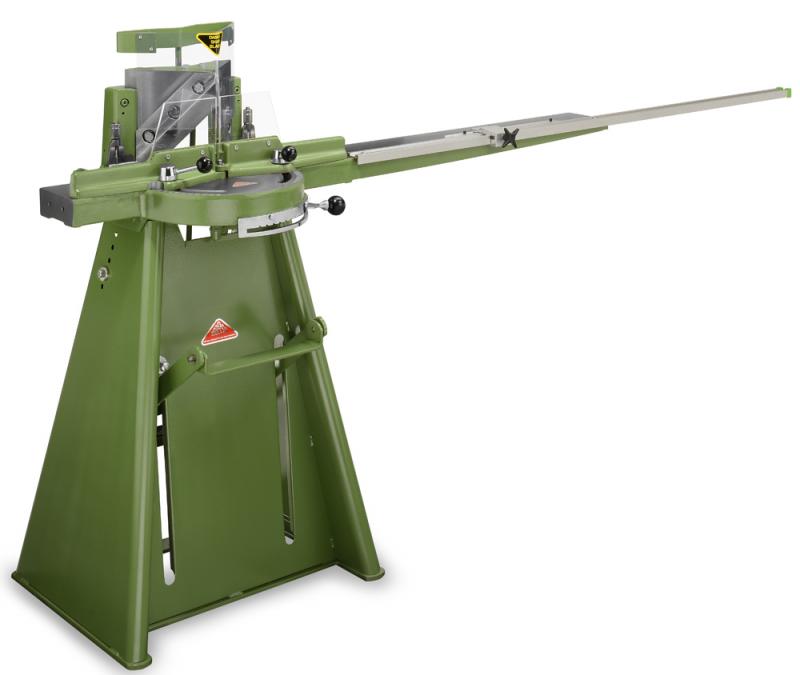

MORSØ-F Mitring Machine

Morso F
Product Reference Code: MR1

Morso Model F mitring machine cuts double mitre at 45° and single mitre up to 90°.Tenons, mortise joints, and a wide variety of angled cuts can also be made. When using the Morso F, you will have no dust compared to a saw.

Morso F leaves the cut surface of the wood perfectly smooth and accurate, requiring no further preparation before joining. The horizontal movement of the knife block is stepwise adjustable. The sliding longitudinal stop and measuring scale ensure accurate repeat work.

The special lever system of the machine ensure a very easy operation. Twin return springs automatically bring the knives back to starting position.

Morso F is delivered with safety guard, waste chute, sliding longitudinal stop, measuring scale, adjustable fences ( 45° - 90° ), and adjustable rebate supports.

Morso F is manually operated with a foot pedal - needs no compressor or electricity and can therefore be operated anywhere.

Please Note:  Wessex Pictures offer a hollow grinding service for all Morsø blades. Please contact your branch for more details



Technical Info

Nett Weight - 90 Kilos (198lb)
Max cutting width - 100mm (4")
Max cutting height - 160mm (6 1/3")
Measuring scale - Up to 1500mm (60")
