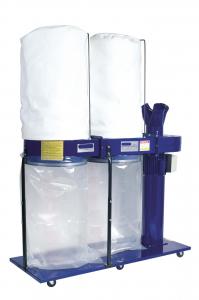

Dust Extractor 2200W (3.0hp) 2x 148ltr capacity


 W792The biggest dust extractor in our professional range, with two large collection bags to run for longer times. The high volume of air moved means this unit is capable of extracting from  three machines simultaneously or multiple smaller machines. The maximum recommended hose length between extractor and collection is 10 metres. We now fit as standard super fine 2 micron filters making the unit suitable even for MDF dust. Supplied with a steel fan, 3 way inlet, four wheels, quick release metal straps on all bags. A 16 amp supply is
required to run the 240v version.

Available in single or 3 phase options.


Motor (Induction)    2200W (3hp)
Flowrate (cubic metres per hour)    3000 m3/hour
Inlet    1x 150mm or 3x 100mm
Bag Capacity    2x 148 Litres
Filtration    2 microns
Dimensions (W x D x H)    1560mm x 550mm x 1920mm
Weight    75kg
