Cassese Products

Cassese - Foot Operated Chopper Guillotine

CS55 Guillotine

• Spring loaded, self levelling rebate supports
• Pin locaters for the blades makes changing them quick and easy
• Factory set pins find instantly the 45 degrees angle after cutting other angles
• Fitted with a large anti-slide foot pedal
• Equipped with a direct read off system for rebate measuring
• 4" maximum width of cut with standard blades

Cassese Guillotine Blades

Cassese - Foot Operated Underpinner

• No air or mains supply required
• Uses cartridge wedges
• Can be used from front or rear
• Indicator light tells operator when wedge is fully inserted
• Easy to change height adjustment

Cassese - Foot Operated Underpinner

• Can be operated from the front or rear of the machine
• Easy to adjust for different profiles
• Clamps moulding while pinning
• Easy to change head for hard or soft mouldings
• Self adjusting 90 degree fence
• Uses cartridge wedges
• Enables wedges to be stacked
• Front and back wedge postion can be easily adjusted

Cassese - Pneumatic Underpinner

• All properties of the CS88
• Pneumatic double function pedal allows the operator to clamp the moulding first before inserting wedge
• Working pressure 90 PSI
• Air consumption 1 cu ft per cycle

Cassese - Pneumatic Underpinner

FEATURES OF THE CS 199M XL

·   Reinforced Plunger

·   Quick-Change magnetic top clamps

·   New Stainless working table

·   Position brake button

·   Mouldings' clamping operated by pneumatic pedal

·   Wedge shooting activated by push button

·   No pressure adjustment required when changing between soft and hard mouldings

·   Aluminium casting for main mechanical components

Cassese - Pneumatic Underpinner

FEATURES OF THE CS299M XL2

·   Wide joining capacity - for mouldings up to 150mm wide and 112mm high

·   Powerful double-action 'push and tighten' rebate clamp - The special action of the clamps draws them accurately and firmly together. The clamps are unique to Cassese.

·   New retractable Ultra clamp system - patented 'Ultra' clamp sytem now retracts into the table leaving a flat surface, great for hadling large frames.

·   New magnetic XL adjustable top clamp - quickly adjust the hold down height. Quick change magnetic rubber ends for hardwood or softwood.

·   No pressure adjustment required - When changing between softwood and hardwood timber.

·   Clamping of mouldings activated by foot-pedal

·   Automatic position lock - carriage is locked in position during the wedge insertion allowing for consistent stacking.

·   Patented adjustable fences - adjusts for 'less than perfect' 45 degree mitres and backs not 90 degress to the bottom in order to prevent gaps in the join.

·   Built in extension arms - ideal for large frames

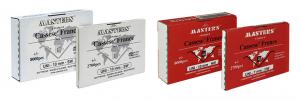

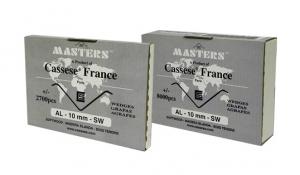

·   Cassese wedges cartridge system - No tools required for easy change of wedge size. All Cassese underpinners are able to use the full range of Cassese cartridge wedges in 7 different sizes, available in both softwood and hardwood.

Cassese - Pneumatic Underpinner

   FEATURES OF THE CS 4008 XL

·   New Removable Clamp with Powerful Double-action "push and tighten" system (patented)

·   Extremely fast, up to 2800 corners per hour (with 2 positions per corner)

·   Concrete base for maximum stability

·   Pneumatic wedge pusher (no more wedge pusher spring!)

·   Stainless working table

·   Reinforced plunger

·   Quick-change magnetic top clamps

·   Touch sensitive screen

·   Can operate either in CS486 or CS3099 mode

·   Joins up to 9 wedges in 9 positions

·   Can memorize 3,000 references (up to 16 alphanumeric digits)

·   Network ready, and Barcode system available (ENA 13)

·   Can operate in 8 different languages

·   Smart access to parts for easy maintenance

Cassese Two headed Mitre Saw

Cassese CS960

The CS960 is introducing the new generation of saws from Cassese. Wider and Higher cuts, Concrete Base and Cast Iron Cutting Heads give perfect quality cuts and maximum reliability. It is in addition more affordable than the popular CS939. the CS960 is the safest and most accurate hand operated double mitre saw available in the market.

FEATURES OF THE CS960 SAW

·   Wider cuts: 160mm (6" 1/3)

·   Higher cuts : 110mm (4" 1/3)

·   Available in 400V triple phase or 230V triple or single

   phase

·   Horizontal cutting stroke - Improves quality of cutting even

   on very delicate mouldings

·   Foot-operated pneumatic clampings - 2 built-in horizontal & adjustable clamps  firmly secure difficult mouldings in order to avoid them from moving or rocking during the cutting operation. They are foot operated for a hands-free operation.

·   Hand-operated cutting stroke - Very easy moving of the

   handles thanks to a special pneumatic device, with an automatic return.

·   45° measuring scale - Allows a direct, speed and accurate measuring.

·   No wastage - Because the blades cut alternately, the waste is effectively nil, which will save a lot of meters of mouldings, and hence money, over the life of the saw.

·   Internal cutting support block - This supports the offcut and prevents chipping on the back edge of the chop.

·   1.5m support arms - Robust feed-in support arm and feed-out measuring arm.

·   No blocked chutes - Because offcuts fall directly into the open waste bin below the cut, there is no need for wastage chutes, which could be easily blocked by large offcuts.

·   Ducted extraction at blades - This dramatically reduces dust by extracting it at the source, the blades.

CONSTRUCTION & ENGINEERING FEATURES

·   Solid build - Weighing 710 kilos, the CS960 Saw is designed and engineered with a focus on durability, reliability and safety.

·   Small width (759mm - 30") - Front and rear panels can be removed to pass through any doorsteps.

·   Cast concrete base - Absorbs all vibrations and movements for absolutely perfect cuts.

·   Cast iron cutting head assembly - Avoids any disadjustment or play of parts for an everlasting reliability

·   Long life, heavy-duty bearings - Air is ducted to the heavy-duty bearings, which reduces overheating with heavy workloads, and increase their working life.

·   Oversized blade collars - To eliminate any possible blade flex.

·   Adjustable for precision and perfection - Blades are easily adjustable for accurate angle and pitch.

Cassese Two Headed Mitre Saw

FEATURES OF THE CS969 SAW

·   Wider cuts : 160mm (6" 1/3)

·   Higher cuts : 110mm (4" 1/3)

·   Available in 400V (± 5%) triple phase or 230V (± 5%) triple or single phase

·   Horizontal cutting stroke - Improves quality of cutting even on very delicate mouldings.

·   4 pneumatic clamps - 2 horizontal & 2 vertical built-in adjustable clamps. Firmly secure difficult mouldings in order to avoid them from moving or rocking during the cutting operation.

·   Automatic cutting stroke - Two-button operation for a safe and automatic forward & return moving of the blades.

·   No wastage - Because the blades cut alternately, the waste is effectively nil, which will save a lot of meters of mouldings, and hence money, over the life of the saw.

·   Internal cutting support block - This supports the offcut and prevents chipping on the back edge of the chop.

·   1.5m support arms - Robust feed-in support arm, and feed-out measuring arm.

·   No blocked chutes - Because offcuts fall directly into the open waste bin below the cut, there is no need for wastage chutes, which could be easily blocked by large offcuts.

·   Ducted extraction at blades - This dramatically reduces dust by extracting it at the source: the blades.

·   Synchronized "switching-on" of dust extractor - The dust extractor is pre-wired to the saw, so that both machines run and stop simultaneously. This reduces power consumption and excessive noise.

CONSTRUCTION & ENGINEERING FEATURES

·   Solid build - Weighing 720 kilos, the CS969 Saw is designed and engineered with a focus on durability, reliability and safety.

·   Small width (759mm - 30") - Front and rear panels can be removed to pass through most doorsteps.

·   Cast concrete base - Absorbs all vibrations and movements for absolutely perfect cuts.

·   Cast iron cutting head assembly - Avoids any disadjustment or play of parts for an everlasting reliability.

·   Long life, heavy-duty bearings - Air is ducted to the heavy-duty bearings, which reduces overheating with heavy workloads, and increase their working life.

·   Oversized blade collars - To eliminate any possible blade flex.

·   Adjustable for precision and perfection - Blades are easily adjustable for accurate angle and pitch.

SAFETY FEATURES

·   CE approved - Satisfying the highest safety standards in the world.

·   Ergonomic two-button operation - Keeps hands away from the cutting area.

·   Safe, heavy duty design - Completely enclosed with no exposed motors or blades.

·   Hardened plastic shield wide window - Allows the operator to have clear visibility of the cut.

·   Convenient blade-change system - When blades require changing for sharpening, they can be easily positioned for safe and comfortable access.

·   Rear service hatch with safety sensor - Allows safe and easy servicing of the machine.

·   Emergency push button cut-off switch.
